Structural waterproofing is the act of waterproofing a structure at or below ground level, using one or more waterproofing systems of Type A, Type B or Type C.
Types of structures that need waterproofing include buildings with basement structures, retained walls, lift pits, or even car parks. Find out how Atal structural waterproofing works below.
Type A protection systems are defined by BS 8102:2022 as “barrier protection”. This is where a membrane is put in place which offers a barrier to the passage of water between the internal and external environments of the structure.
Type B structurally integral waterproofing, as defined by BS 8102:2022 (Code of Practice for protection of below ground structures against water ingress), is where the structure itself is constructed as an integral water-resistant shell.

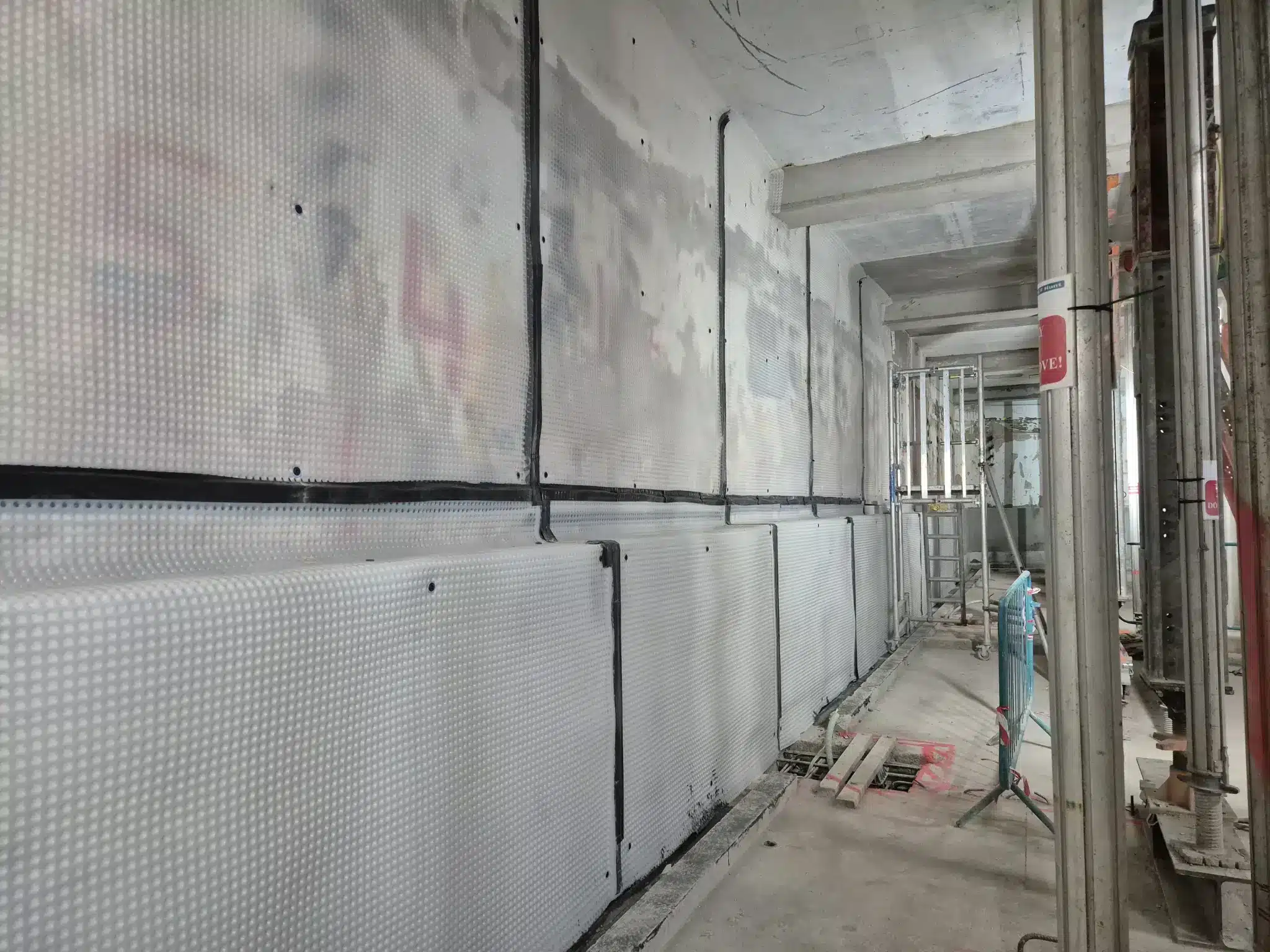

Type C systems use internal groundwater management, utilising a cavity between the external skin and internal finish in structures. Groundwater is lead to an appropriate sump-pump system or drainage outlet with a non-return valve.
Our design philosophy is the selection of technically appropriate, value-driven structural waterproofing systems to match the needs of the client’s design, as well as the correct detailing of the designed solution to achieve a durable, watertight sub-structure.
Grade 1A: Lower grade car parks. Some seepage and damp areas are tolerable. Local drainage might be necessary to deal with seepage.
Grade 1B: Car parks. No seepage but damp areas from internal and external sources is acceptable, dependent on intended use. Local drainage might be necessary to deal with seepage.
Grade 2: Plant rooms and workshops (requiring a drier environment than Grade 1); storage areas, lift pits. No water penetration acceptable, damp areas as a result of internal air moisture/condensation is tolerable; ventilation might be required.
Grade 3: Ventilated residential and commercial areas, including offices, restaurants etc; leisure centres. No water penetration acceptable, ventilation, dehumidification or air conditioning necessary, appropriate to the intended use.
Where there is doubt about the use of the room, Grade 3 protection should be provided.
Atal UK designs all four types of protection available as set out in BS 8102:2022
Atal take design responsibility for the waterproofing phase of the project, from initial design consultation with the architect, consulting engineer, contractor or all three, through the design itself complete with all necessary CAD drawings (including revisions) to produce a completed structural waterproofing strategy.
